Ghosted view illustrations are used to reveal elements of a drawing that would normally be obscured by other components. The technique involves rendering part of the structure as semi-transparent — or “ghosted” — allowing the viewer to see interior features while maintaining the context of the exterior form. For example, a ghosted view illustration might be a brick wall that is partially transparent so that a kitchen layout inside a house remains visible.
The term ghosted view simply refers to a controlled transparency, where selected areas of an illustration appear partially visible, like a ghost. The technique is widely used in commercial illustration, product marketing, and design visualisation to communicate structure, layout, and functionality without fully removing external elements.
Recently, Adrian Cartwright developed a more advanced application of ghosting when commissioned to produce a detailed 3D model of a Super-yacht. Sections of the hull and decks were designed to reveal interior rooms, enabling the client to generate bespoke promotional imagery with the flexibility to remove or fade structural elements as required. This modular approach allowed multiple marketing visuals to be created efficiently from a single master model.
Working from a 3D model also provides the flexibility to produce still imagery, using layered workflows in Adobe Photoshop to apply controlled ghosting effects with precision.
Planet Illustration continually explores new methods to enhance visual clarity, production efficiency, and cost-effectiveness for clients.
Please see the examples below of ghosted view illustrations, and feel free to contact Adrian to discuss how this approach could support your project.
Super Yacht
Created as a fully detailed 3D model for marketing use, this project incorporates selectable elements that can be toggled on or off to reveal internal features within the structure.
This layered approach provides the client with flexibility, enabling multiple visual configurations from a single master model. The 3D asset can then be exported into Adobe Photoshop, where controlled transparency and layering techniques are applied to produce highly detailed ghosted view illustrations for promotional and sales materials.
Hovercraft technical illustration
Ghosted and cutaway technical illustration of the SR.N6 Hovercraft.
Using both ghosted view and cutaway techniques to reveal the internal structure and mechanical elements while preserving the integrity of the exterior form. Selected sections of the hull are rendered transparently, while other areas are physically cut away to expose key components, enabling a clear understanding of the craft’s construction and layout.

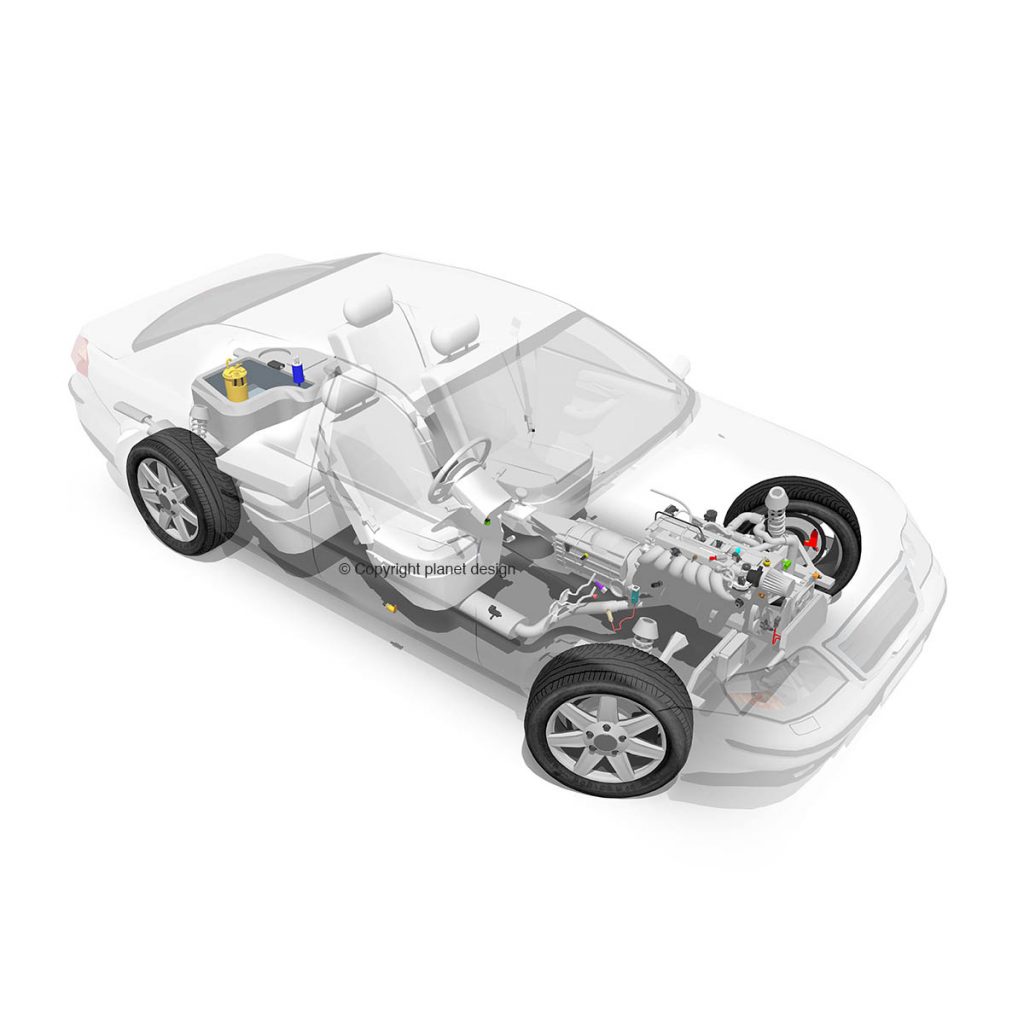

Ghosted view illustrations of a car
Ghosted view illustration of a car drawn to support an automotive electronics manufacturer.
The illustration reveals multiple areas throughout the vehicle where sensors, control units, and switches are installed. Using advanced layering and transparency techniques in Adobe Photoshop, Adrian preserved the exterior form of the car while selectively exposing internal systems.
The result maintains the integrity of the vehicle, while clearly communicating the relationship between the electronic components and the vehicle’s mechanical structure — an effective visual example of ghosted view illustration.
Ghosted view illustration
This ghosted view illustration was commissioned to demonstrate the advantages of using geotextile systems to increase usable landfill capacity and improve waste management efficiency.
The ghosted view area highlights the additional space created through the application of the geotextile. Clearly visualising the volumetric gain and communicates the spatial benefit in a direct and easily understood way.
A simple visual technique — yet highly effective in conveying measurable advantage.
